SP-732 (Sperry/ Beckman) Panaplex Display

SP-732 (Sperry/ Beckman) Panaplex Display

Planar neon gas discharge 'Panaplex' readout. The separate anodes allow single-digit multiplexing.
Same as SP-332, but without keep alive cathode.

Röhrendaten/ Tube Data
German	English
Typ	Type		SP-732
Hersteller	Brand		Beckman
Vergleichstypen	Substitudes		SP-332, HB-332
Symbole	Displayed Symbols		2-Digit, 7 segment, 2 x PR
Symbolhöhe	Symbol Height		7.75mm (0.305")
Abmessungen	Dimensions		19mm (0.740") X 21mm (0.815") X 11.5mm (0.455") thick
Pindurchmesser	Pin Diameter	mm	0.48 (0.019")
min. Betriebsspannung	min. Supply Voltage	V	160
typ. Brennspannung	typ. maintaining Voltage	V	135
Betriebs- Kathodenstrom	Typical Cahthode Current	mA	Siehe Datenblatt für die verschiedenen Segmente!/ See data sheet for different segments!
Sockel	Base		18 Pins, special arrangement
Fassung	Socket		Spezielle 20 Pin Fassung/ Special 20 Pin Socket

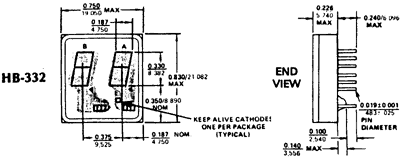

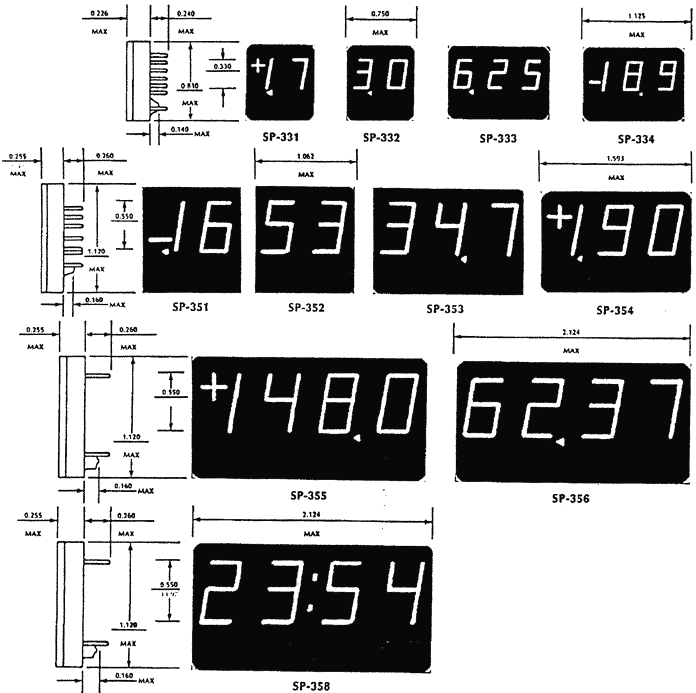

Outline (look at HB-332 and SP-332!):

Pinout:

Ansicht von vorne / View from front
A10 and B10 connections are missing!
